FTTH indoor cables are used inside buildings or rooms. It has white color and black colors optional. In the center of the cable there is the optical communication unit that contains the fibers, with the two parallel non-metical enhanced FRP/Metal/KFRP as the cable strength member, and surrounded with the LSZH cable jacket.

Indoor FTTH cables have the same function as the commonly used indoor fiber cables, yet it has a few special features. FTTH indoor cables are small diameter, water-resistant, soft and bendable (usually made with bend insensitive fibers), easy for deployment and maintenance. Custom made indoor FTTH cables will also meet the requirement of thunder-proof and anti-rodent.

Indoor FTTH cable features:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability
Fibers count is 1-12 cores, can be other fiber cores upon request.
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke, zero halogen and flame retardant sheath

Application
Access network, fiber to the home, user’s end directly cabling Indoor cabling and distribution

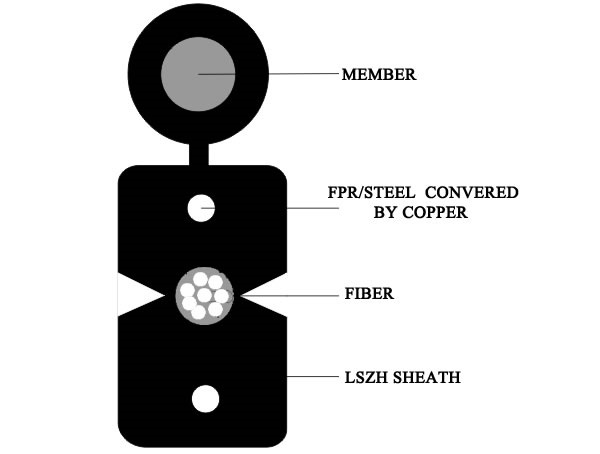

The FTTH drop cables are with flame retardant cable jacket and with supporting wire, this cable has strengthen members inside for supporting the whole body. The drop ftth optical fiber cable is with special structure to easily pull the fibers out from the cables, the FTTH drop cables are ideal to use for direct installation into the rooms, especially good for being used in homes and offices.

Two parallel fiber reinforced plastics are placed on the two sides of cable, the cable is made with LSZH sheath. Single steel wire as additional strength member ensuring excellent performance of tensile strength. It is a widely used FTTH drop cables for many fiber to the home projects, easy to use and low cost.


FTTH drop cable Features
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability
Fibers count is 1-12 cores, can be other fiber cores upon request.
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke, zero halogen and flame retardant sheath

FTTH drop cable applications
Use in ftth projects Ideal for direct installation into the rooms,
Ideal used in homes and offices

FTTH duct cables are made for connecting user's devices with outdoor feeder cable, especially suitable for duct installation. The optical fiber unit is located in the center. Two parallel strength members are placed at two sides of the cable. The cable is with a jacket to become FTTH Drop Cable. Then FTTH Drop Cable is joint with waterproof tape, AL-plastic tape and outer jacket.

The two parallel FRP strength member enhance the tensile strength. The cable is made with the LSZH (LSZH, Low smoke, Zero halogen) material jacket, which is RoHS compliant. Water blocking tape & AL-plastic tape has good water proof capability.


FTTH duct cable features
RoHS- Low smoke, zero halogen and flame retardant sheath.
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
Ideal for use in aerial and duct access cabling.
Soft and flexible, good bending capability.
Dual strength members ensure good performance of crush resistance, tensile strength to protect the fiber.
AL-plastic tape makes the cable crush resistant and moisture proof.
Water-proof tape to help prevent the ingression of water into the cable.


FTTH duct cable application
Used in aerial and duct access cabling Installation in small bending environment
Connection between indoor and outdoor equipment
